Unveiling the Breadboard's Achilles Heel

1. The Not-So-Perfect Prototyping Pal

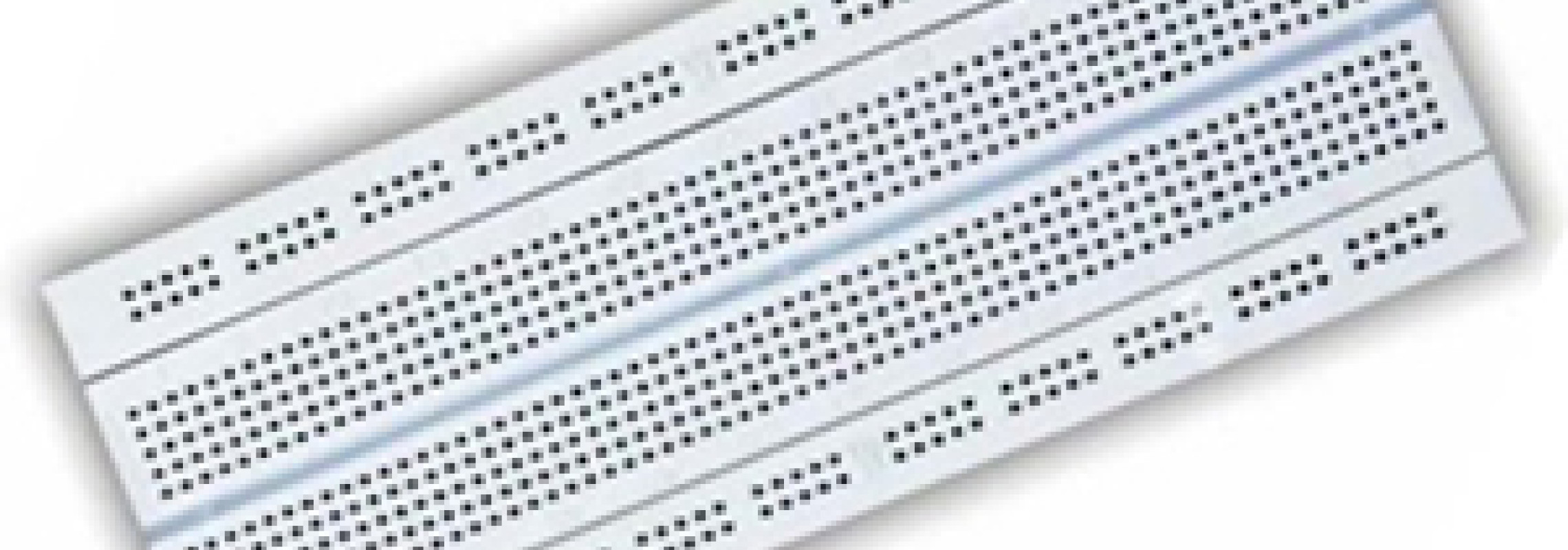

Ah, the breadboard! That trusty, perforated plastic friend that's been the starting point for countless electronic projects. From blinking LEDs to complex circuits, it's the go-to tool for hobbyists, students, and even seasoned engineers. But like any tool, the breadboard has its quirks, its limitations that you'll inevitably bump into as you venture deeper into the world of electronics. Knowing these limitations isn't about bashing the breadboard; it's about understanding its strengths and weaknesses to use it effectively (and avoid some head-scratching troubleshooting sessions).

Think of it like this: a breadboard is like a fantastic sandbox. You can build amazing castles (circuits), but it's still sand. It's not a permanent foundation, and certain conditions (like really high voltages or frequencies) will make your sandcastle crumble. We're going to explore the "crumbling" factors today.

One thing that's not-so-obvious to newcomers is that a breadboard is inherently... messy. It's a rat's nest of wires under the surface, even if you're trying to keep things neat. Each connection adds a little bit of resistance and capacitance (we'll get to those in a bit), and all those parallel wires can cause interference. It's not a huge deal for simple circuits, but these factors can become significant in more complex designs.

So, buckle up, because we're about to dive into the specifics of what a breadboard can and cannot handle. Understanding these limits is key to avoiding frustration and building circuits that actually work the way you expect them to!

Understanding Breadboards

The Frequency Fiasco

2. High-Speed Signals

This is a big one. Breadboards aren't exactly designed for speed. When you start working with high-frequency signals (think MHz and above), the inherent capacitance and inductance of the breadboard become significant factors. Remember those messy wires and parallel connections we talked about? They act like tiny capacitors and inductors, which can distort your signals, causing them to lose strength, change shape, or even disappear entirely.

Imagine trying to run a marathon in flip-flops. You can do it, but it's not going to be pretty, and you're definitely not going to set any records. Similarly, pushing high-frequency signals through a breadboard is like asking it to perform beyond its capabilities. The parasitic capacitance and inductance will degrade the signal, leading to unpredictable behavior and, ultimately, a non-functional circuit.

What does this actually mean in practical terms? Well, if you're trying to build a high-speed amplifier, a radio receiver, or any circuit that deals with fast signals, you're going to struggle on a breadboard. The distributed capacitance (the small capacitance between adjacent rows and columns) acts like a low-pass filter, attenuating high frequencies. Meanwhile, the inductance from the wiring adds impedance at higher frequencies, further messing things up.

So, while a breadboard is great for prototyping basic logic circuits or audio amplifiers, it's generally not suitable for RF (radio frequency) applications or high-speed digital circuits. In those cases, you'll need to move to a more controlled environment, like a properly designed PCB (printed circuit board).

How To Use A Breadboard Build Circuits Fast & Easy

Power Problems

3. Not a Powerhouse

While breadboards are awesome for low-power projects, they aren't designed to handle significant amounts of current or voltage. The internal connections are typically made of thin metal strips, which have a limited current-carrying capacity. Exceeding this limit can cause the connections to overheat, melt, or even break, potentially damaging your components or, worse, causing a fire hazard.

Think of it like trying to push a fire hose's worth of water through a garden hose. The garden hose is going to struggle, and eventually, it's going to burst. Similarly, forcing too much current through a breadboard's connections will lead to overheating and failure. It's crucial to check the datasheet for your components and ensure that the current flowing through the breadboard's connections is well within their rated limits.

Generally, breadboards are best suited for projects that operate at low voltages (typically 5V or less) and with relatively low currents (a few hundred milliamps at most). If you're working with higher voltages or currents, you'll need to find alternative solutions, such as using thicker wires, dedicated power distribution boards, or designing a custom PCB.

Remember, safety first! Always double-check your power supply settings and ensure that you're not exceeding the breadboard's limitations. A little bit of precaution can prevent a lot of headaches (and potential damage).

How To Ground A Circuit On Breadboard Wiring Flow Schema

Component Compatibility

4. The Quirky World of Component Fit

Breadboards are designed to accommodate standard DIP (Dual In-line Package) components with leads that fit neatly into the holes. However, not all components are created equal. Some components, especially those with surface-mount packages (SMD) or non-standard lead spacing, may not fit properly or may require creative (and sometimes unstable) workarounds. Also, components with large heat sinks attached may be too bulky to fit comfortably on the board. So, what can you do?

Surface-mount components are becoming increasingly common, and while they're great for compact designs, they don't play nicely with breadboards. You can sometimes find adapter boards that allow you to mount SMD components onto DIP-compatible packages, but this adds extra cost and complexity. As for those heat sinks, you can use short component legs or small wires to lift the component up from the board. This may give you enough room to fit the component and its heat sink on the breadboard without issue.

Another common problem is dealing with components that have different pin spacing than the standard 0.1-inch grid of the breadboard. In these cases, you may need to bend the leads carefully to make them fit, which can be a delicate process and may damage the component if not done correctly. You can also sometimes find adapter boards that allow you to connect components with different pin spacing to the breadboard. In some cases, you may be able to solder wires to your component's leads, which will allow you to plug the component into the breadboard without issue. However, be sure that you have adequate ventilation while soldering, and be careful with hot irons!

Before you start building your project, it's always a good idea to check the dimensions and lead spacing of your components to ensure that they're compatible with the breadboard. This can save you a lot of frustration down the line. If you've tried all of the methods above without success, you may have to look for a different component altogether.

How To Use A Breadboard

The Vibration Vulnerability

5. Unstable Connections

Breadboards rely on friction and pressure to make electrical connections. The component leads are held in place by spring contacts inside the holes. While this works well for stationary projects, it can be a problem if your project is subject to vibration or movement. Over time, the connections can loosen, leading to intermittent failures or complete circuit malfunctions. Vibration can also damage components by straining their wire connections. If you can imagine a tiny, thin wire snapping due to repeated, small motions, you understand the difficulty with vibrations!

Think of it like building a house of cards on a shaky table. It might stand for a while, but eventually, the slightest vibration will cause it to collapse. Similarly, a breadboard circuit that's subject to vibration is prone to failure. The vibrations will cause the component leads to move slightly, disrupting the electrical connections and leading to unpredictable behavior.

If you're building a project that needs to be robust and reliable, especially in a mobile environment, a breadboard is not the ideal solution. Consider using a more permanent connection method, such as soldering the components onto a PCB or using wire-wrapping techniques.

If you absolutely must use a breadboard in a vibrating environment, there are a few things you can do to mitigate the problem. First, make sure that all the component leads are securely inserted into the holes. You can also use tape or glue to secure the components to the breadboard, preventing them from moving around. Alternatively, you can use small, soft wires to connect components to the breadboard. These wires can absorb some of the vibration and prevent it from being transmitted to the components themselves.

The Breadboard Digital Electronics TM Ppt Download

Frequently Asked Questions About Breadboard Limitations

6. Your Breadboard Questions Answered!

Still have questions about breadboard limitations? Here are some common queries and their answers:

Q: Can I use a breadboard for high-voltage projects?

A: It's generally not recommended. Breadboards are designed for low-voltage applications. High voltages can cause arcing or insulation breakdown, potentially leading to electric shock or fire.

Q: What's the maximum current I can safely run through a breadboard connection?

A: It depends on the breadboard and the quality of the connections, but a safe rule of thumb is to stay below 500mA per connection. Exceeding this limit can cause the connections to overheat and fail. If your components will be using a lot of current, soldering wires to the leads, and plugging the wires into the breadboard, will typically solve this problem. A good, solid wire will carry far more current than the clip that is typically used in a breadboard.

Q: Can I use a breadboard for my Arduino project?

A: Absolutely! Breadboards are perfect for prototyping Arduino projects. Just be mindful of the voltage and current limitations, and avoid using them for high-frequency signals.

Q: Are there any alternatives to breadboards for prototyping?

A: Yes! Perfboards, stripboards, and wire-wrapping are all viable alternatives. For more permanent projects, consider designing a custom PCB. These other methods will generally prove to be much more stable than using a standard breadboard.

Q: My breadboard circuit keeps malfunctioning. What could be the problem?

A: There could be several causes. Check for loose connections, short circuits, or components that are exceeding their voltage or current ratings. Also, consider the possibility of signal degradation due to the breadboard's inherent limitations, especially if you're working with high-frequency signals.
